Chevron 37
The Chevron 37 impresses with it's open-plan living area offering plenty of space for family gatherings, seamlessly connecting the kitchen, dining, and outdoor living for year-round entertaining. On the ground floor, there's a home theatre and office, while upstairs features three bedrooms with walk-in robes, a main bedroom with ensuite, a study nook, and a children's activity area – making it an ideal family home design.

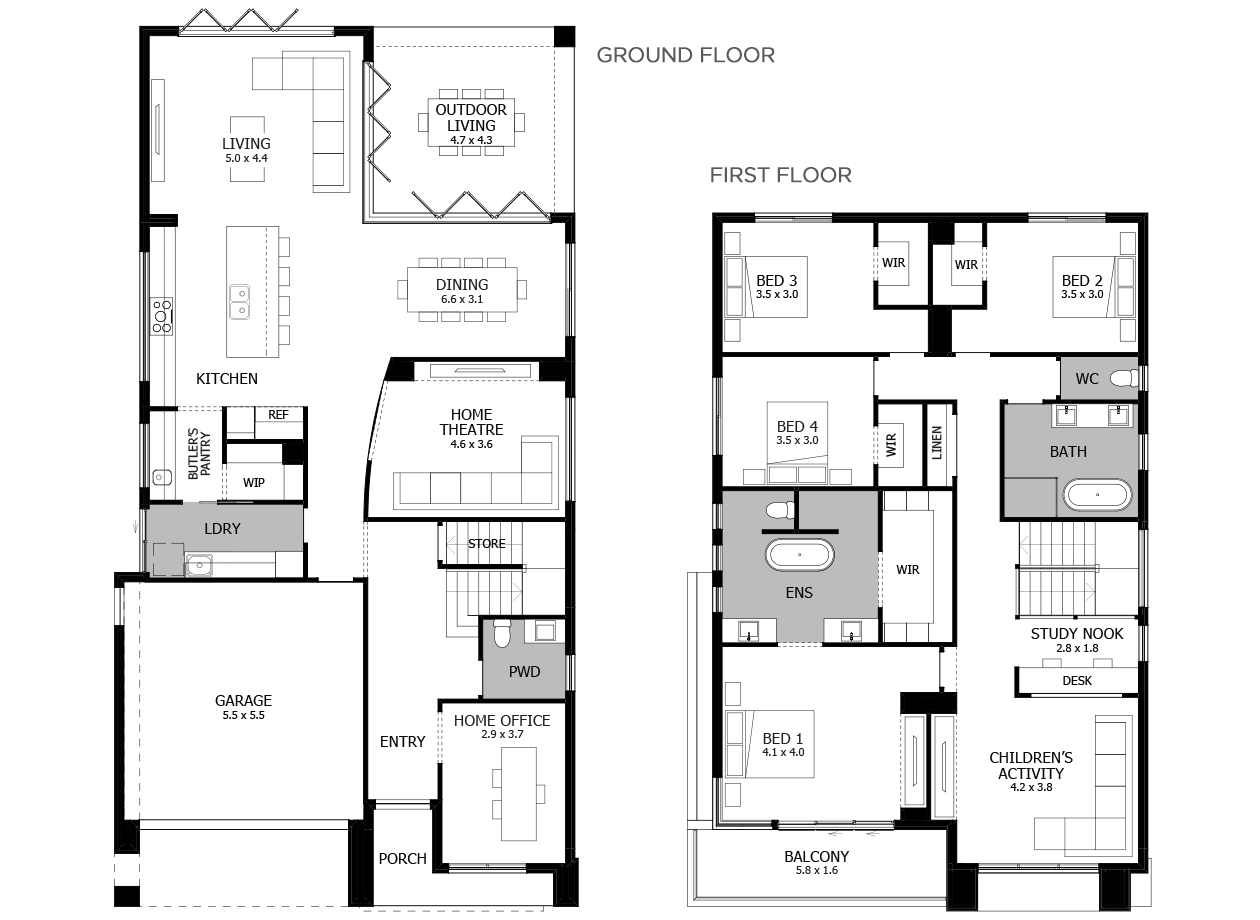

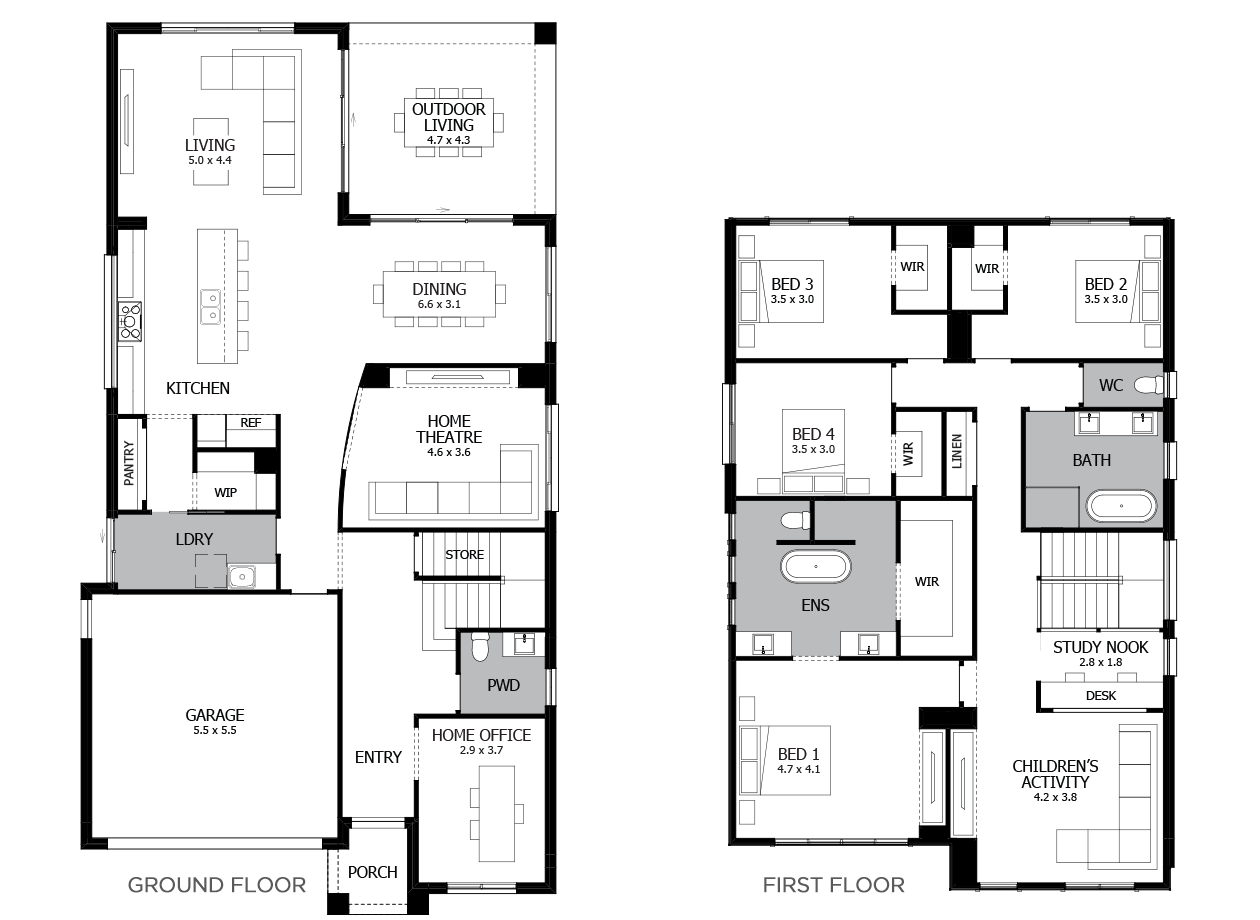

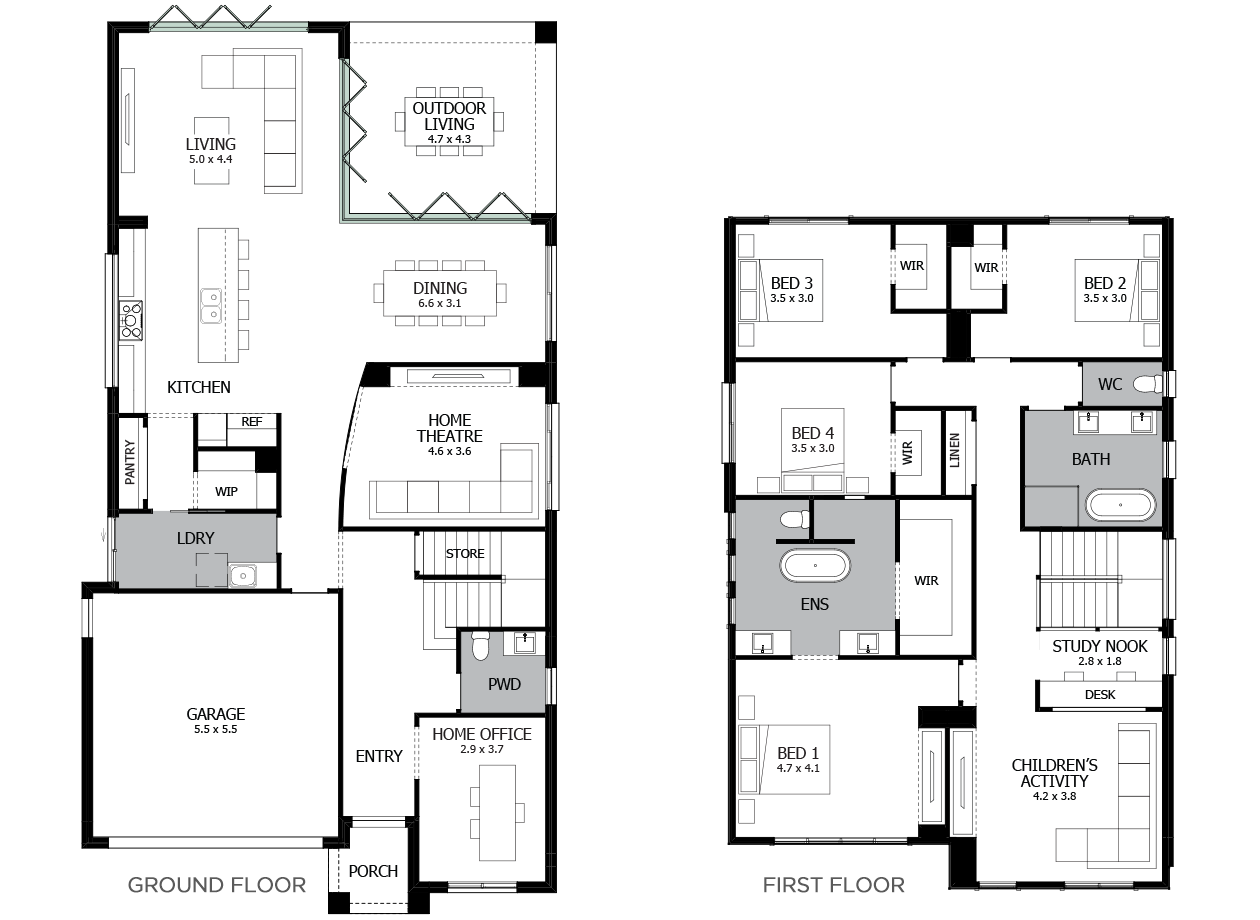

Enlarge floor plan

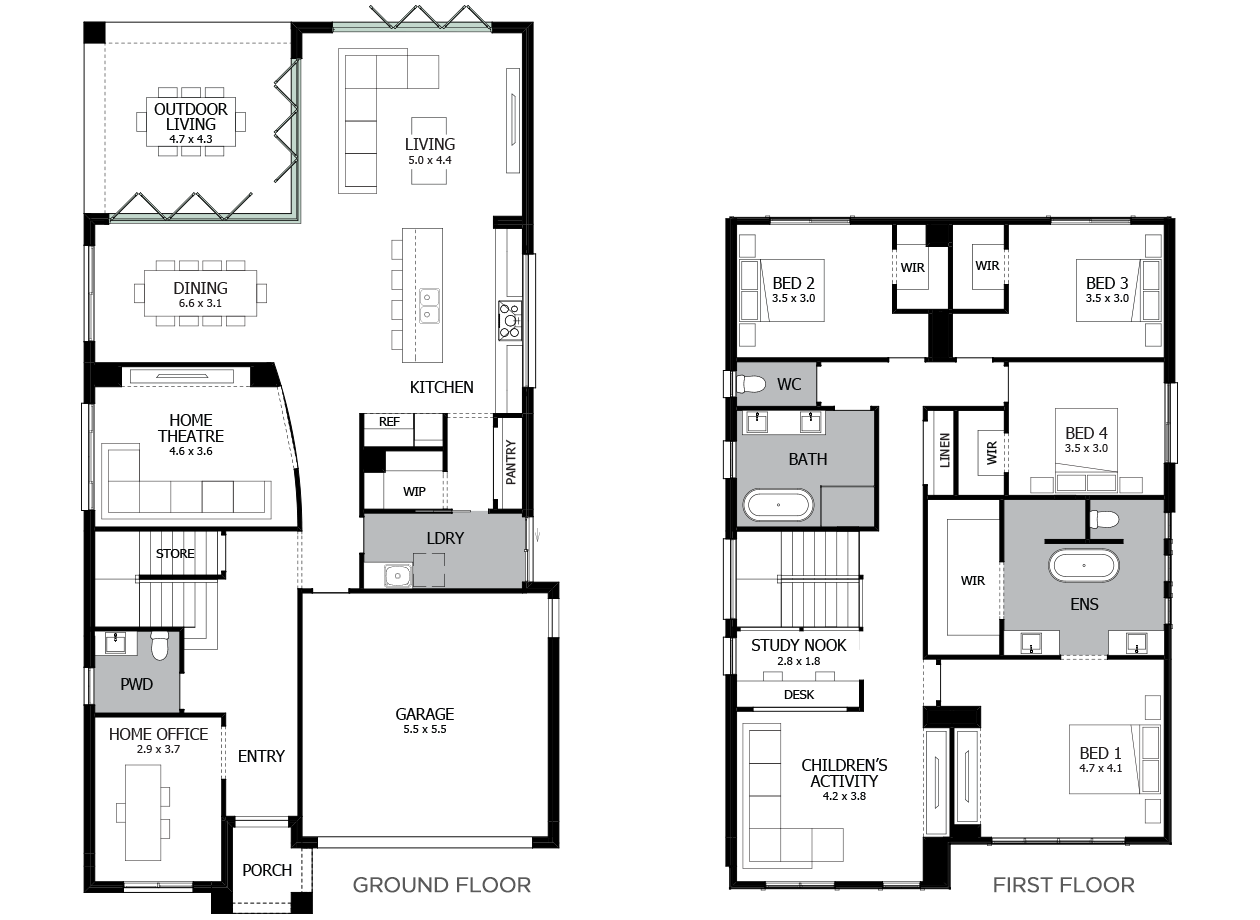

Flip floor plan
Rotate 90 degrees
4
2
1
2
Width
10.66m
Length
19.55m
Total
343.79m²
Fits lot width |
12.50m
Room Dimensions
Living
5.0 x 4.4m
Dining
6.9. x 3.1m
Home Theatre
4.6 x 3.6m
Home Office
2.9 x 3.7m
Children's Activity
4.8 x 3.9m
Study Nook
2.8 x 1.8m
Bed 1
4.8 x 4.0m
Bed 2
3.5 x 3.1m
Bed 3
3.5 x 3.1m
Bed 4
3.5 x 3.0m
Outdoor Living
4.7 x 4.3m
Garage
5.6 x 5.5m
Additional Features
- Walk-In Robes - all bedrooms
- Walk-Through & Walk-In Pantry
- Under-Stair Store
- Curved Wall to Home Theatre
- Home Office & Study Nook
- Children's Activity
- Outdoor Living

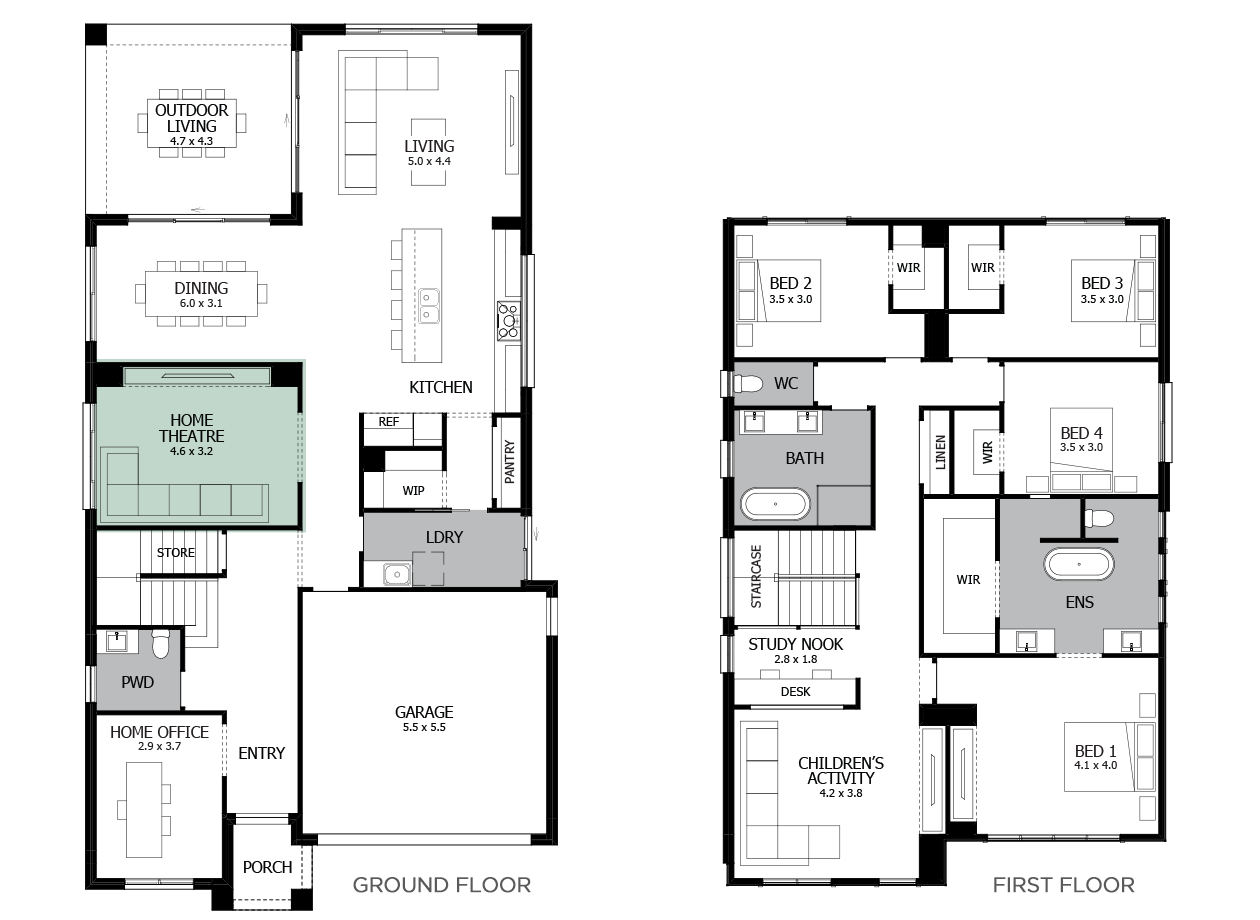

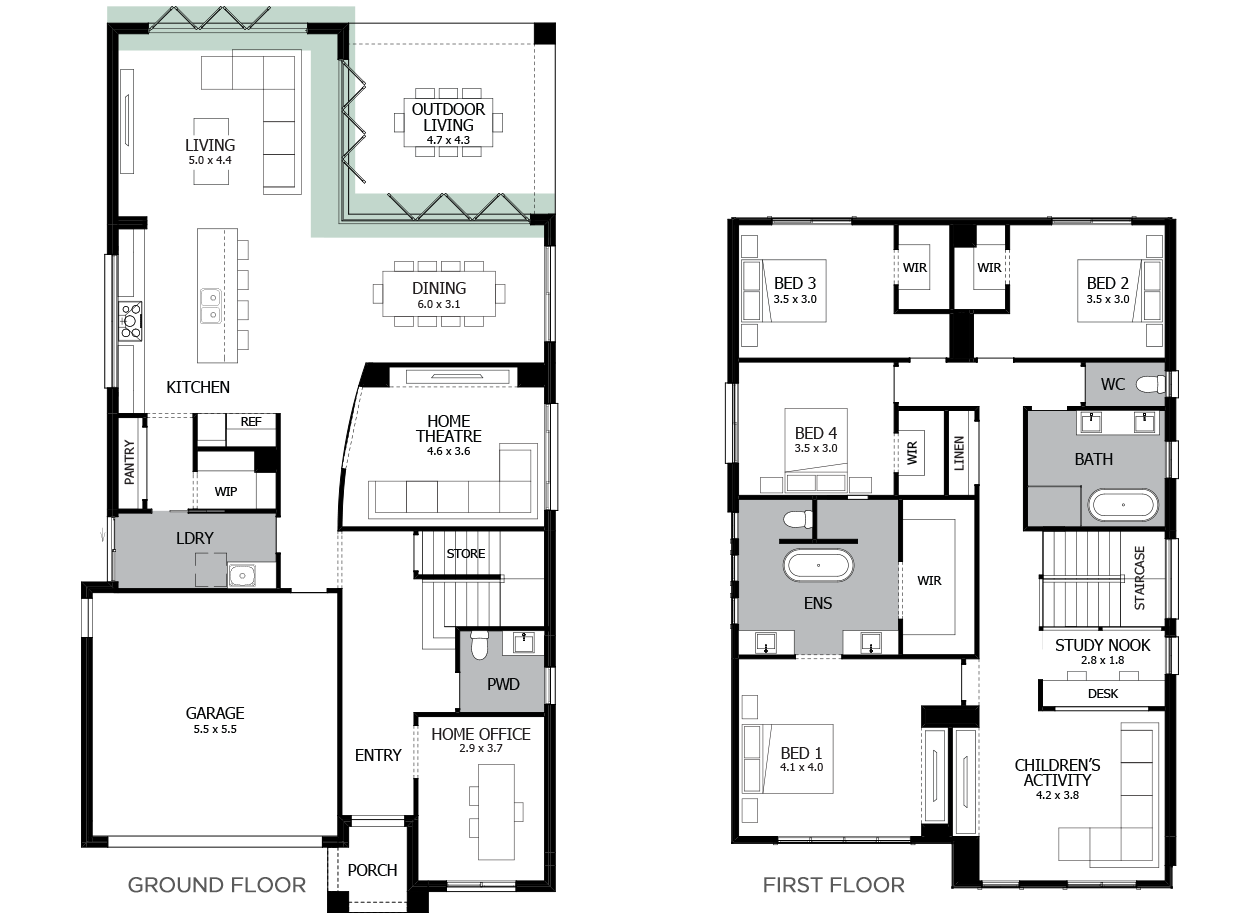

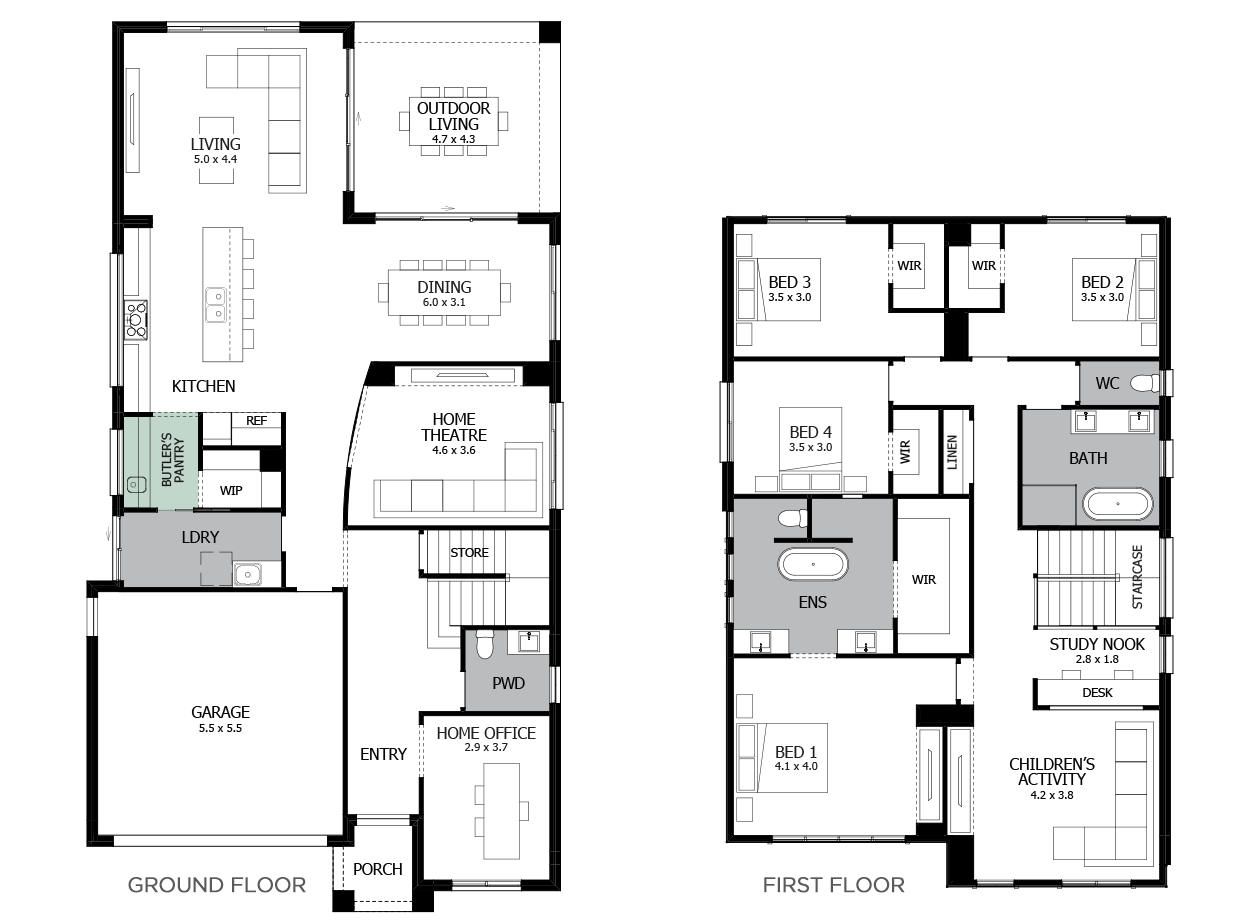

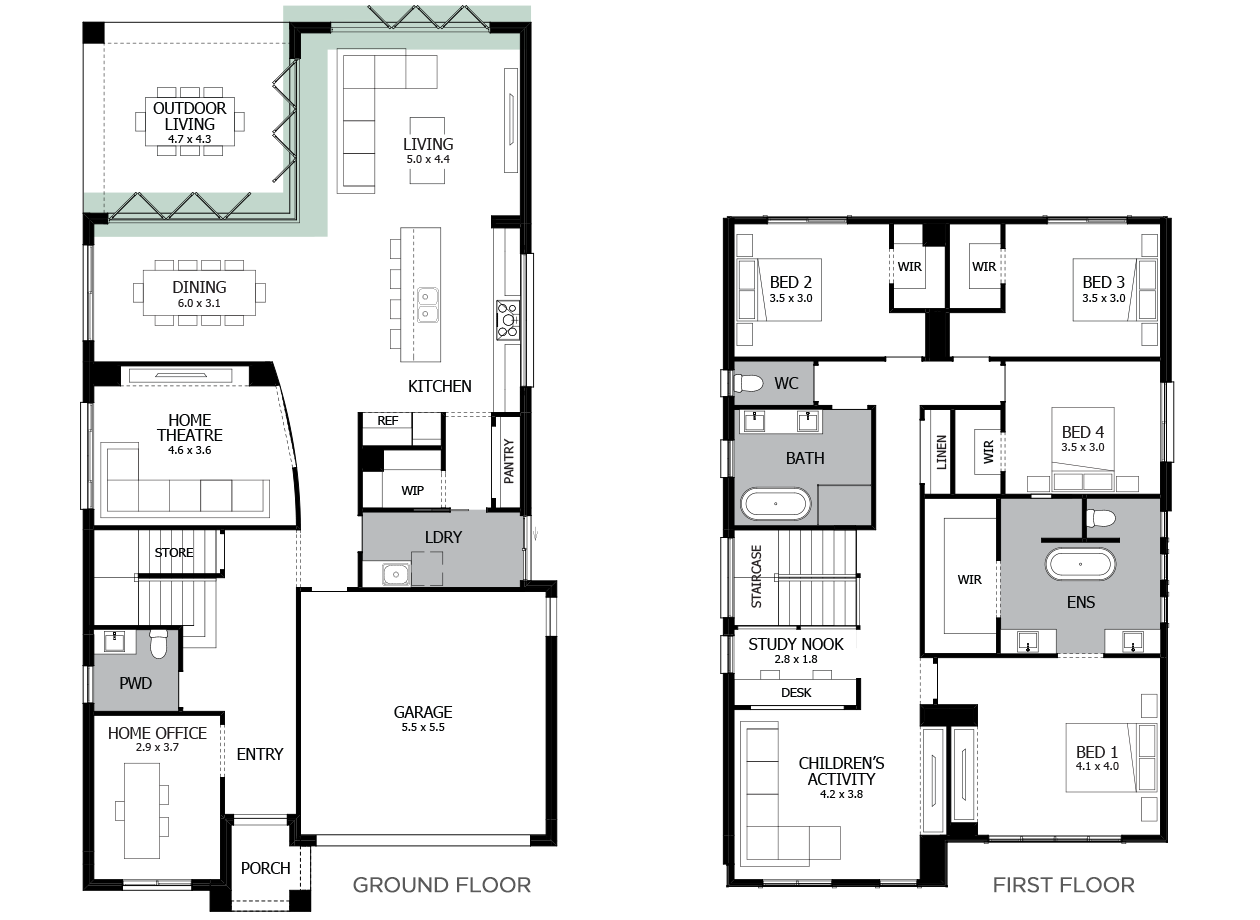

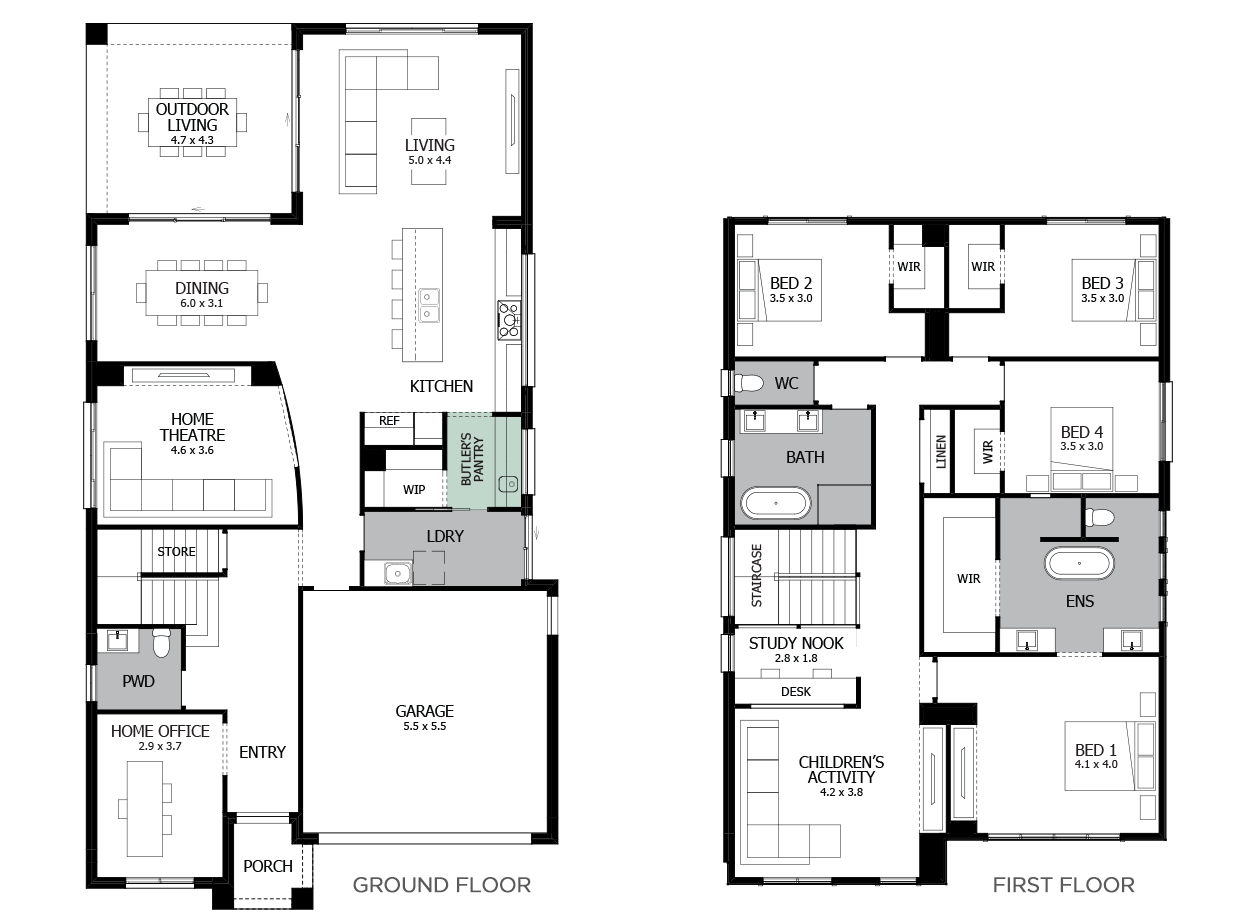

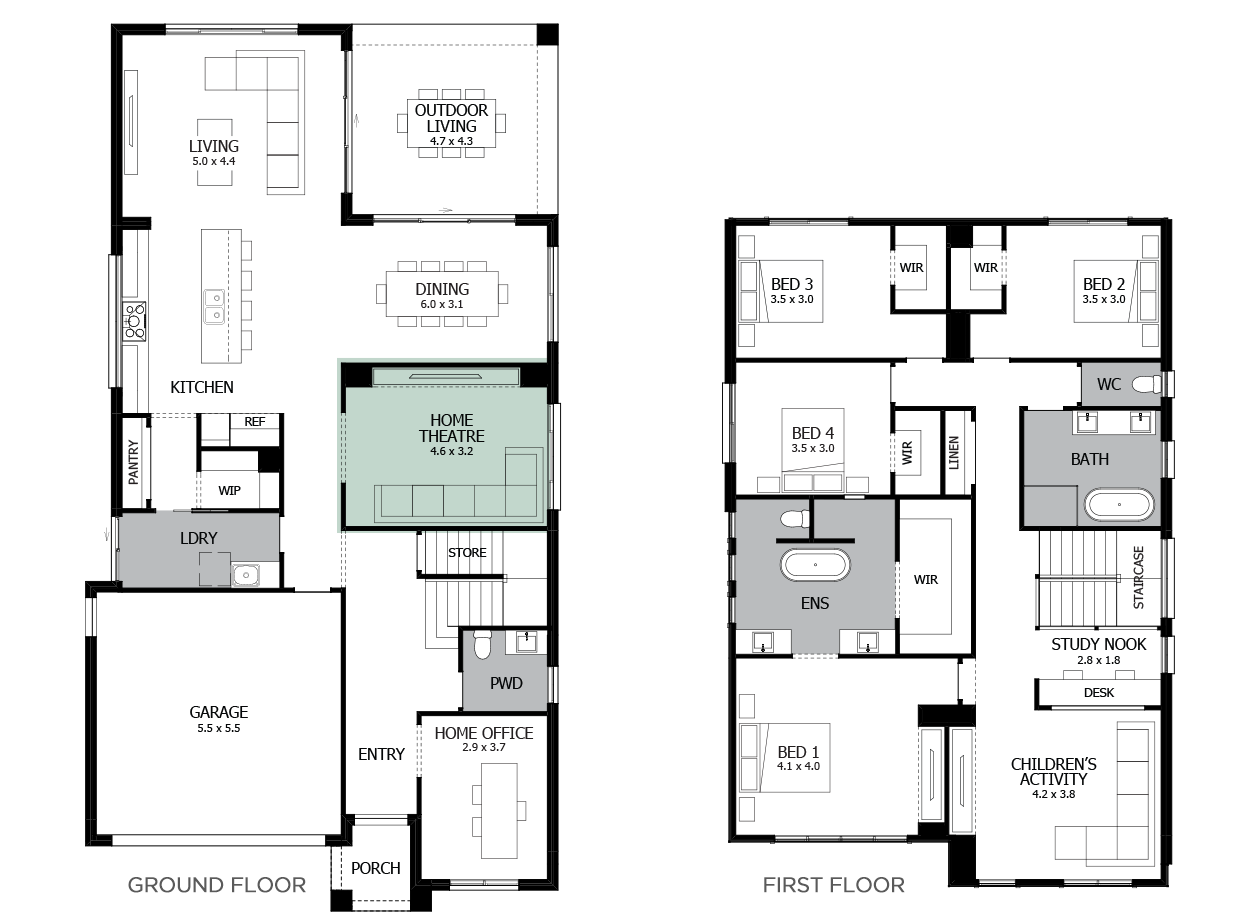

Note: Floor plan will differ slightly with application of different facades. Room dimensions detailed above reflect the Standard plan only and will vary for Click-On options, refer to plans for exact dimensions. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your New Home Sales Consultant for details in your area. Total (m²) area includes Outdoor Living area.
x
Note: Images of facades shown are a guide only. Material finishes, dimensions and colours shown are purely an expression of the artist and subject to change depending on availability and design updates. Roof tiles are a non-allowable selection where a specific home design, facade or click on floor plan option includes an internal ceiling finish that is raked or cathedral. Please refer to our current price list and specifications for façade finishes allowed in published price.
Facades
Note: Images of facades shown are a guide only. Material finishes, dimensions and colours shown are purely an expression of the artist and subject to change depending on availability and design updates. Roof tiles are a non-allowable selection where a specific home design, facade or click on floor plan option includes an internal ceiling finish that is raked or cathedral. Please refer to our current price list and specifications for façade finishes allowed in published price.
