Eclipse 32
The Eclipse 32 is a functional and practical design for modern family living. A home that has something for everyone; the ground floor includes a lounge, home theatre and spacious open plan living/kitchen/dining that effortlessly connects to the outdoor living.
If you’re after a little luxury (and privacy), this design is the one; the first floor includes a large main bedroom with ensuite, walk-in robe and a parent’s retreat, as well as three spacious bedrooms, children's activity, study nook and main bathroom to keep the kids entertained.

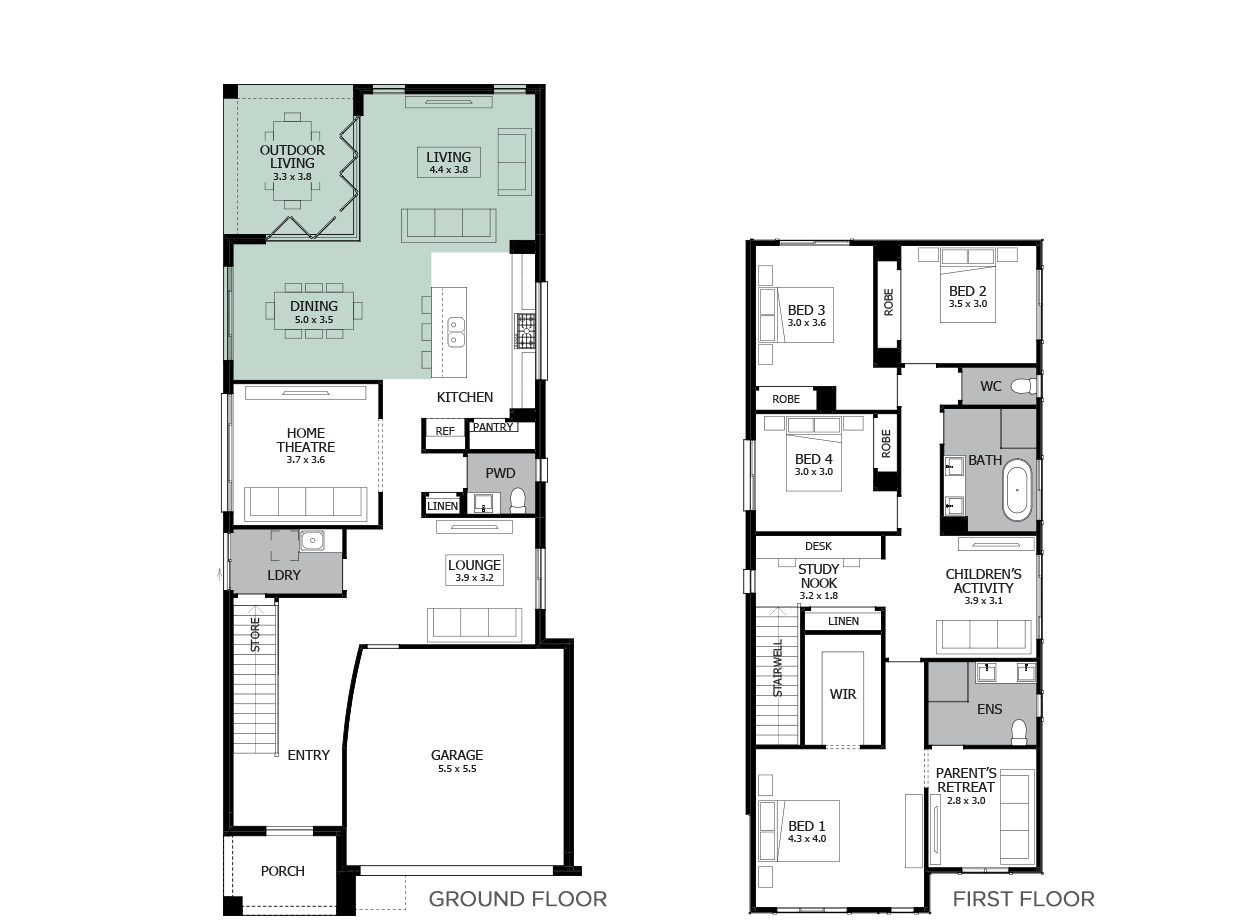

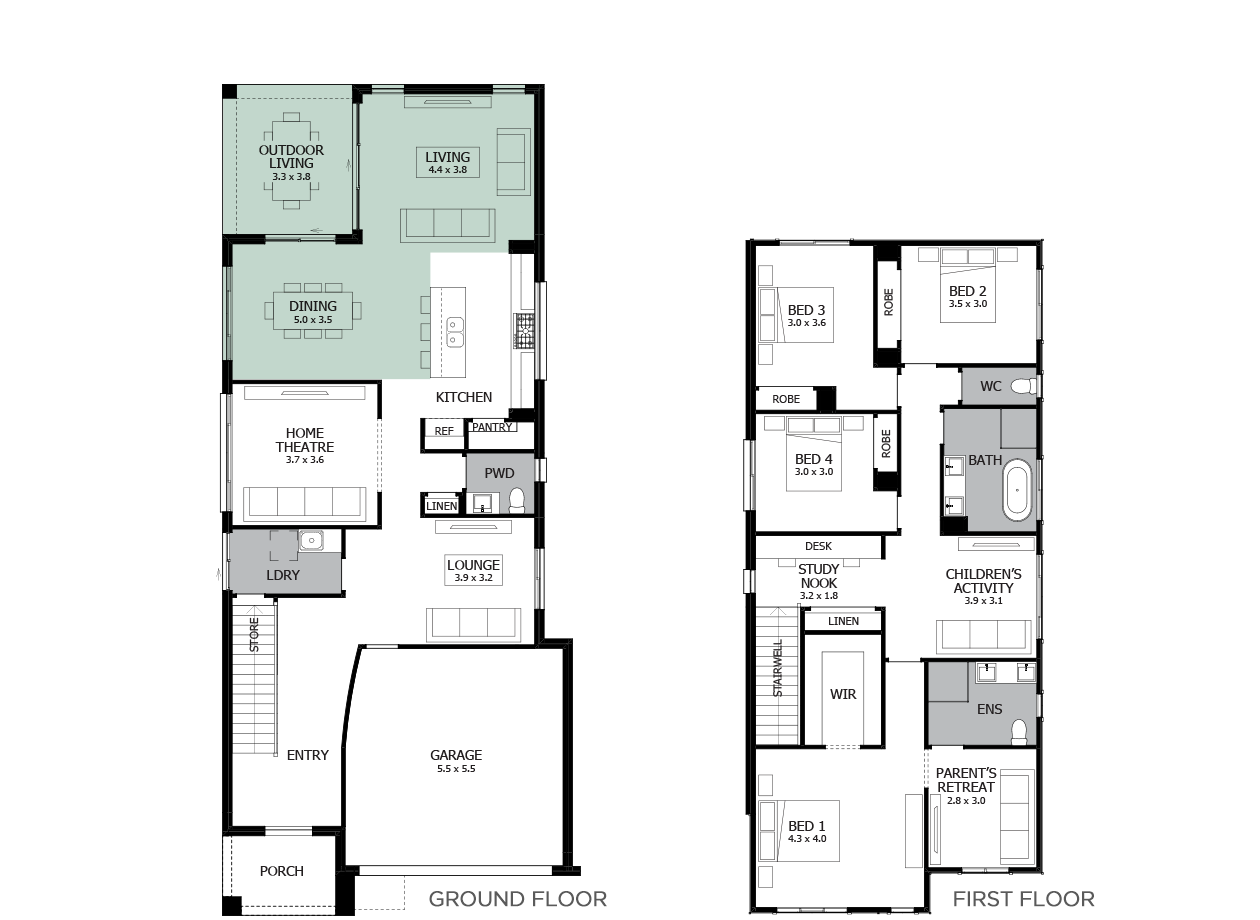

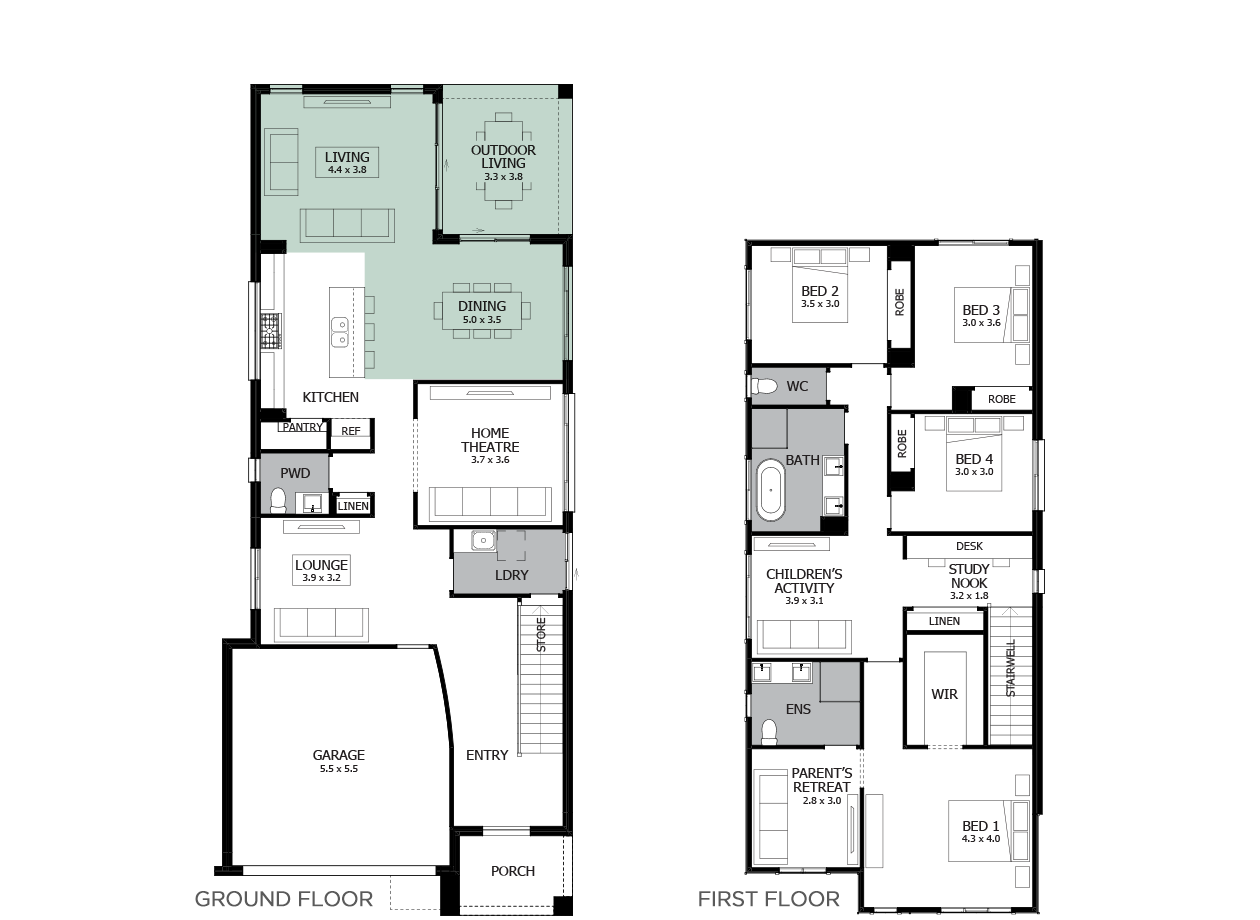

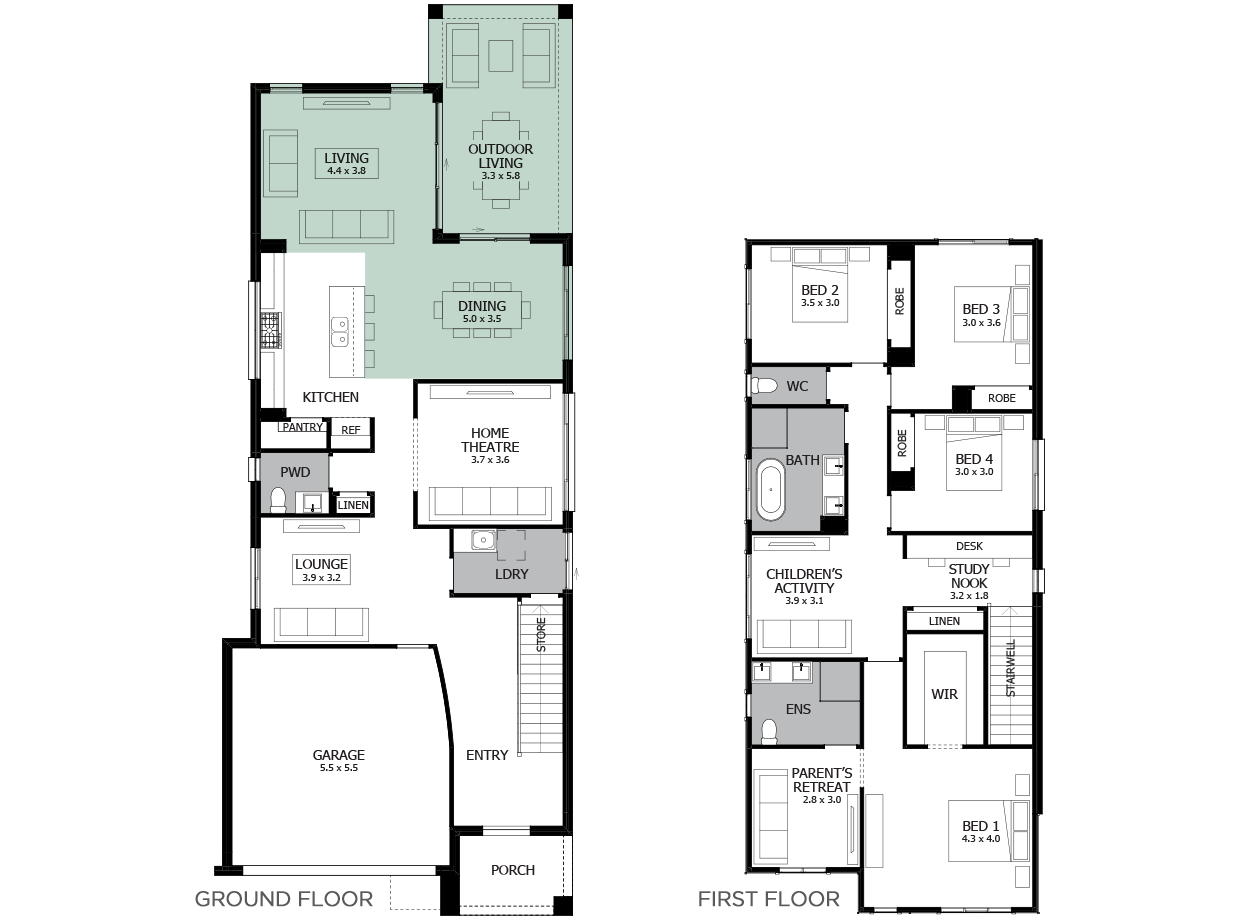

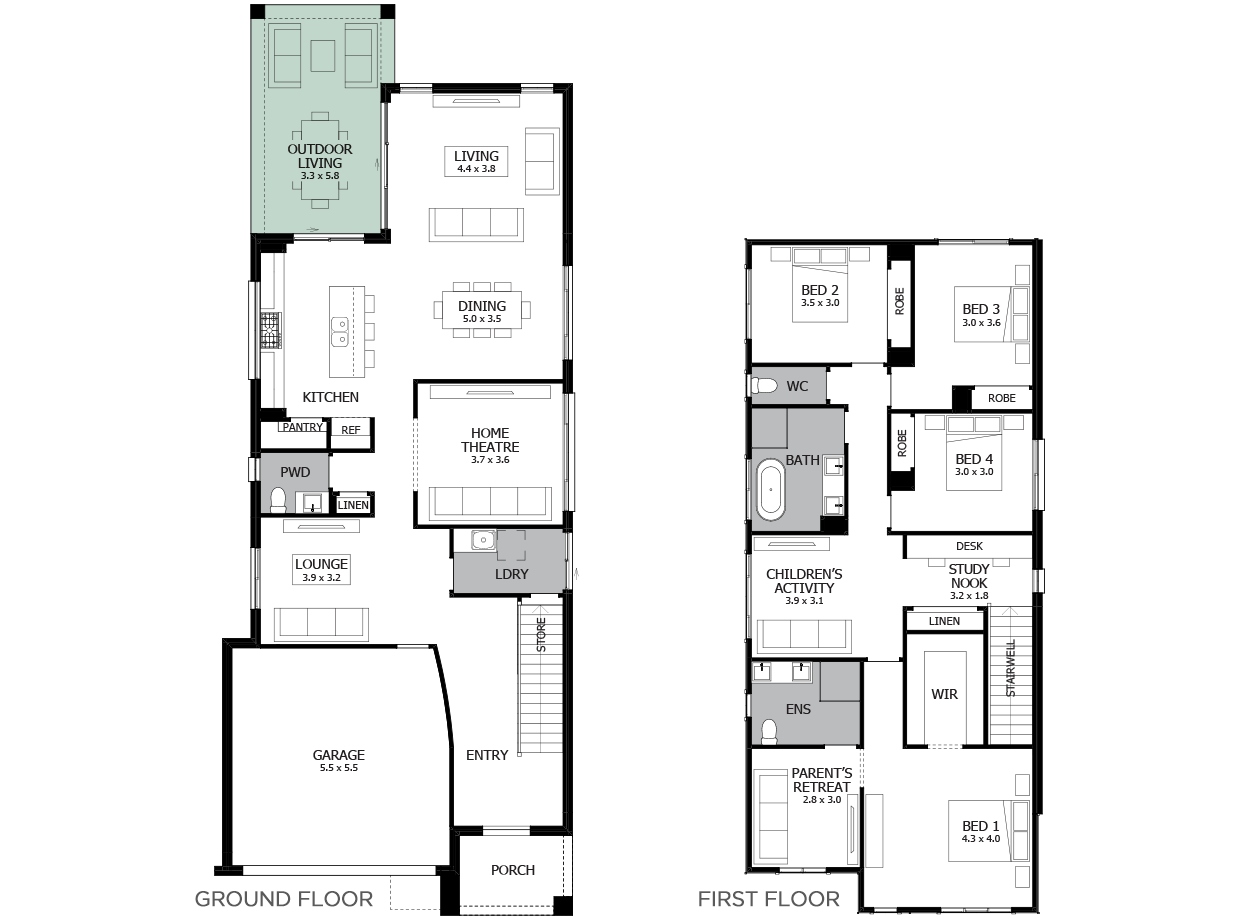

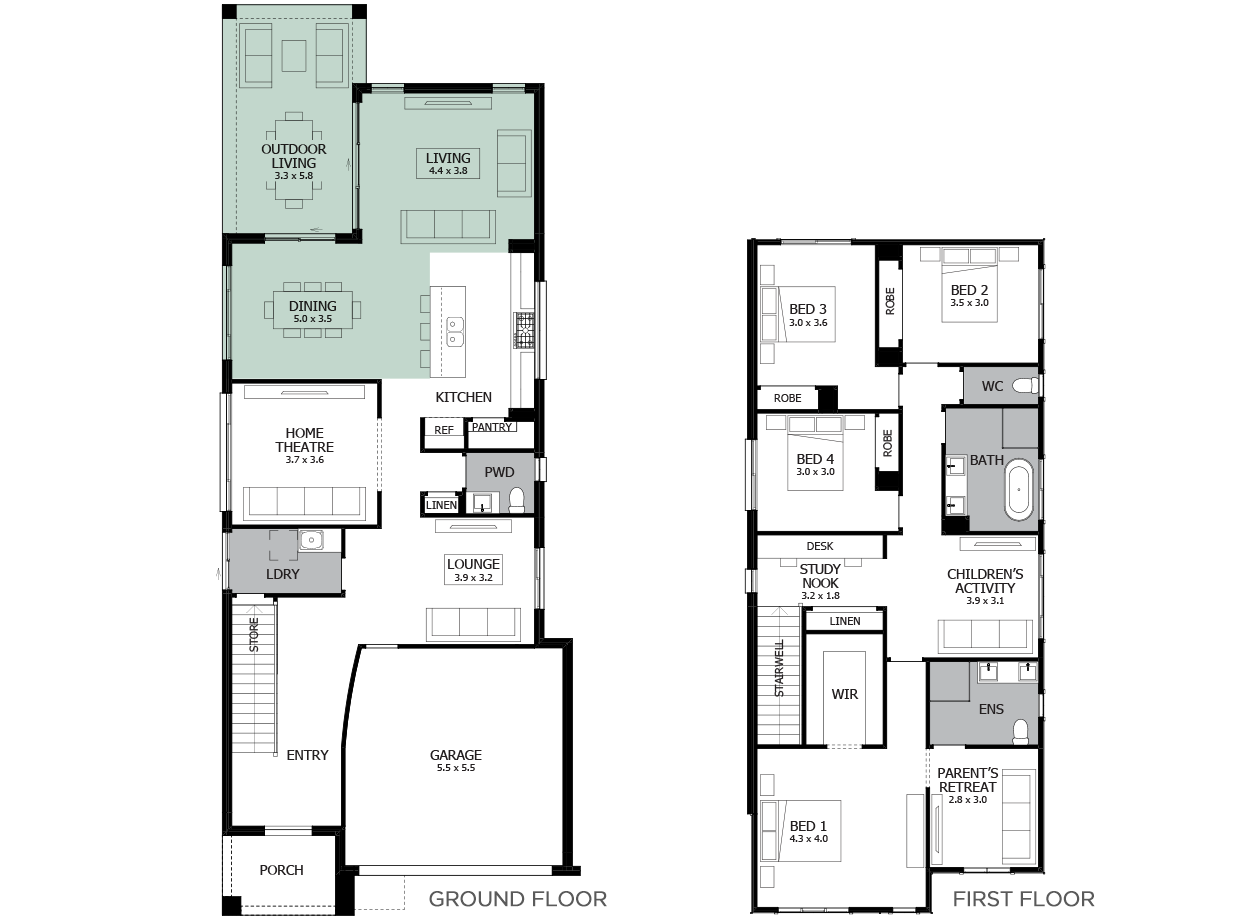

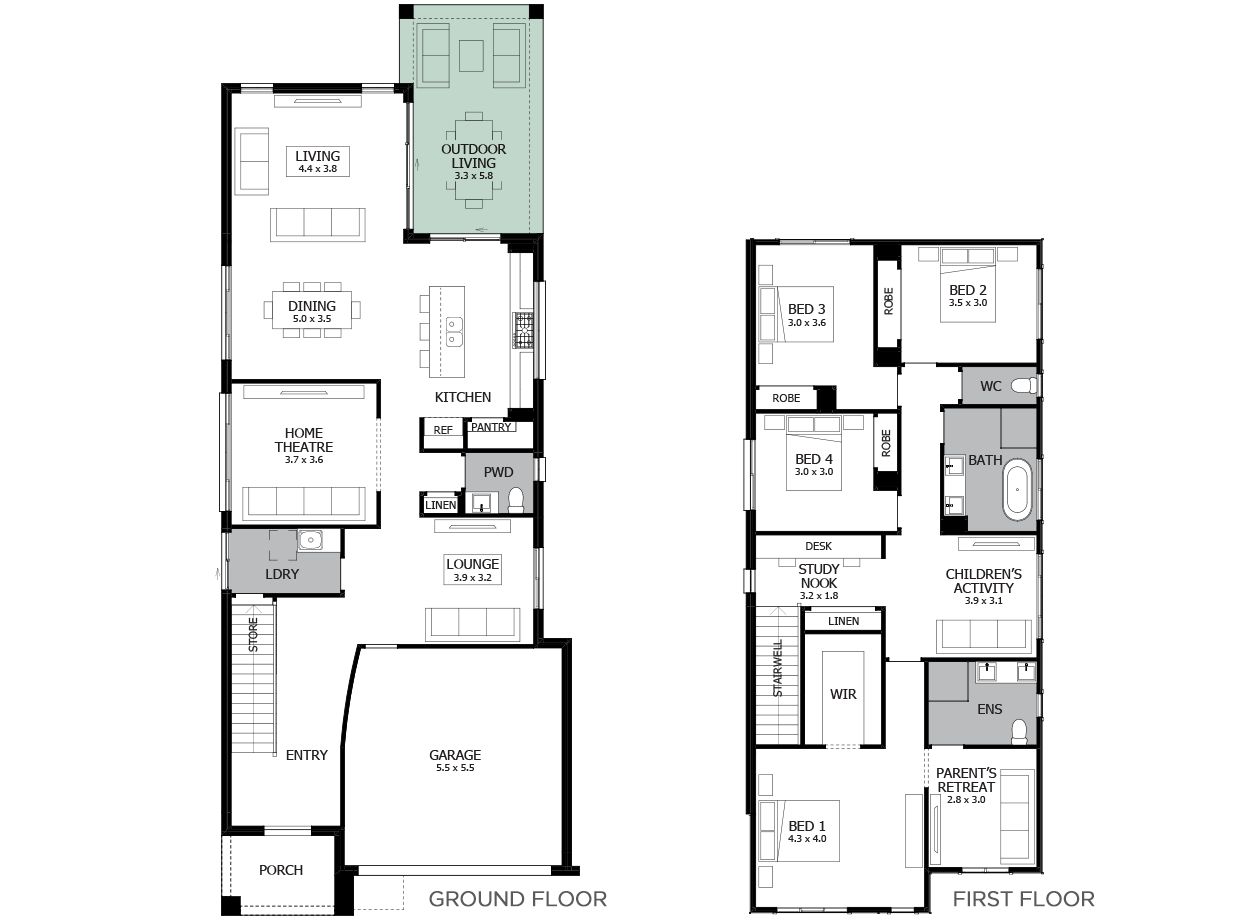

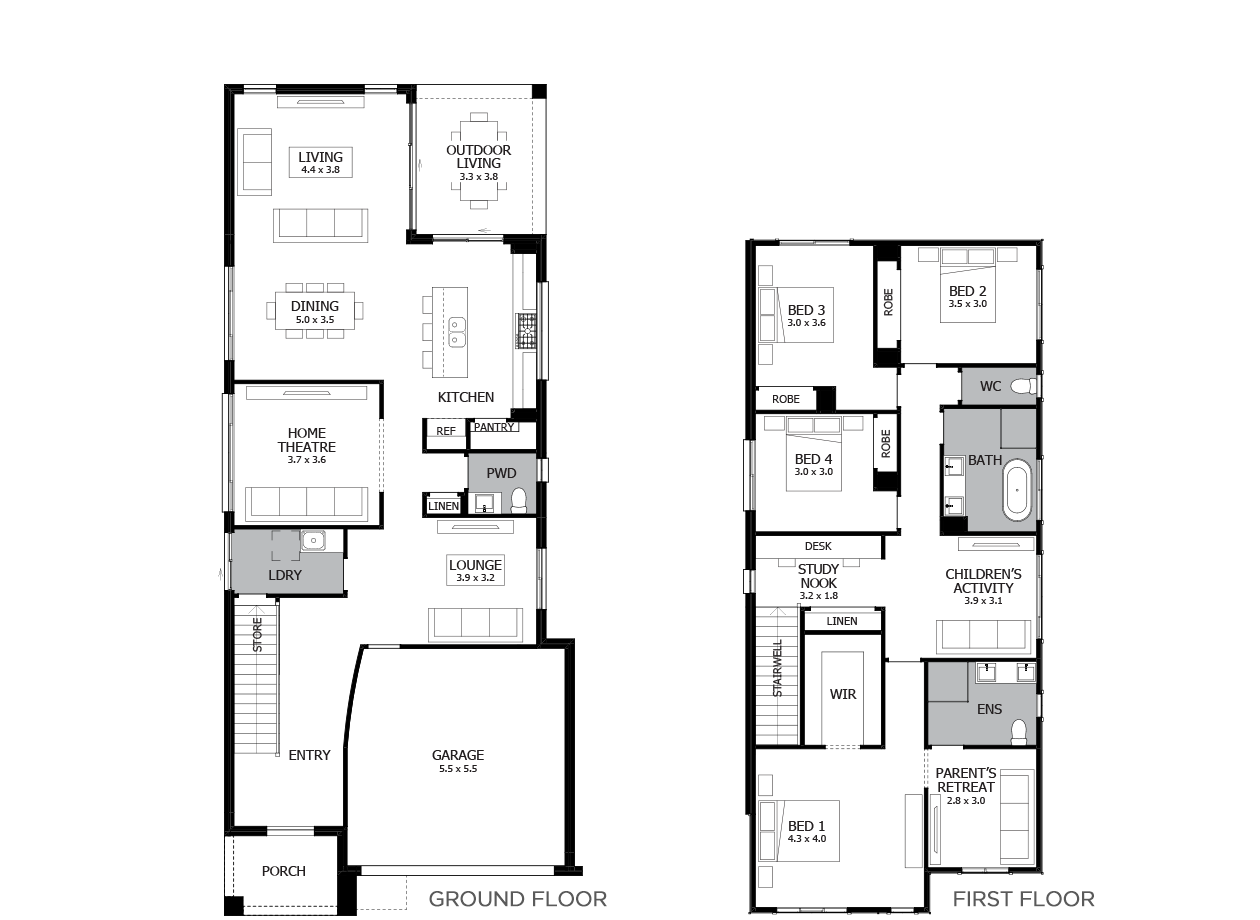

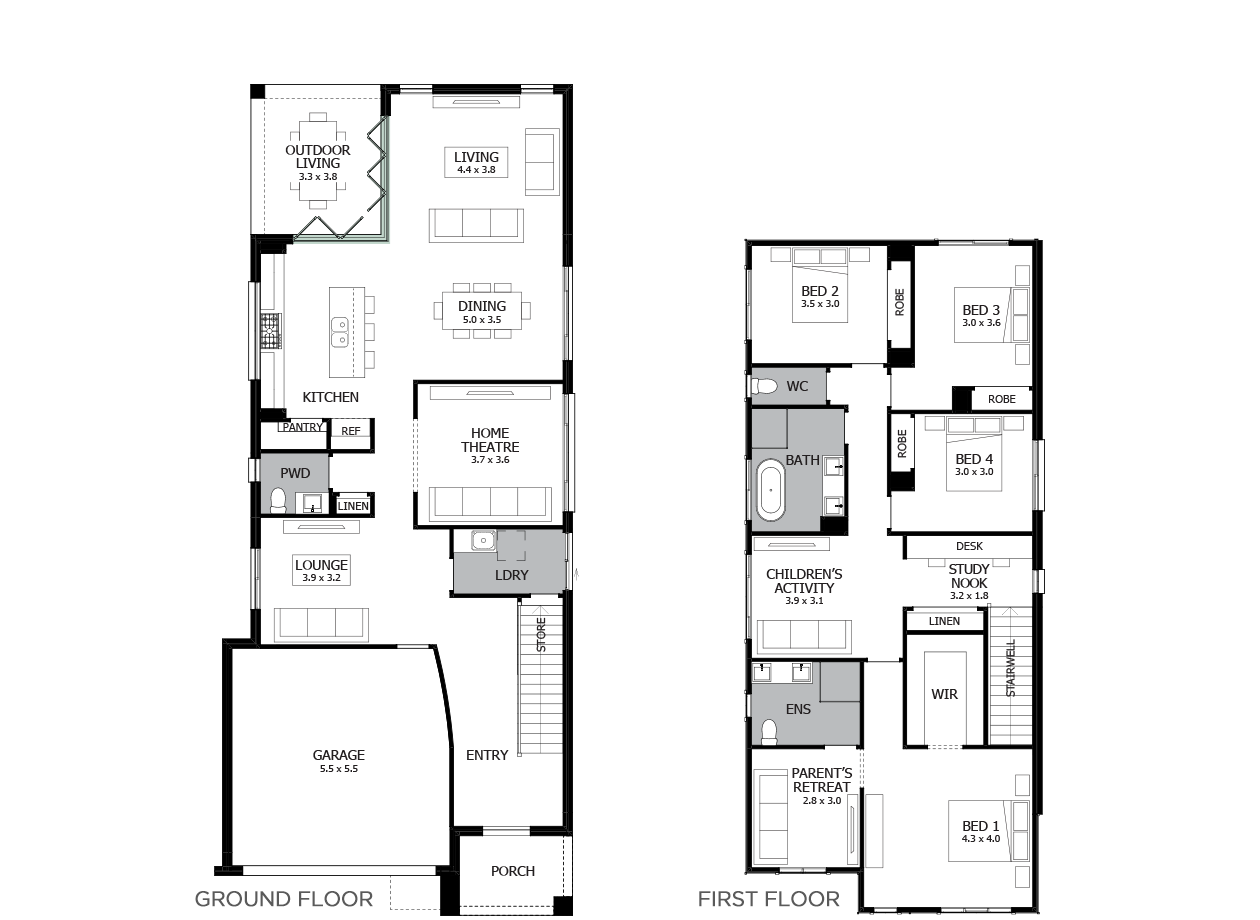

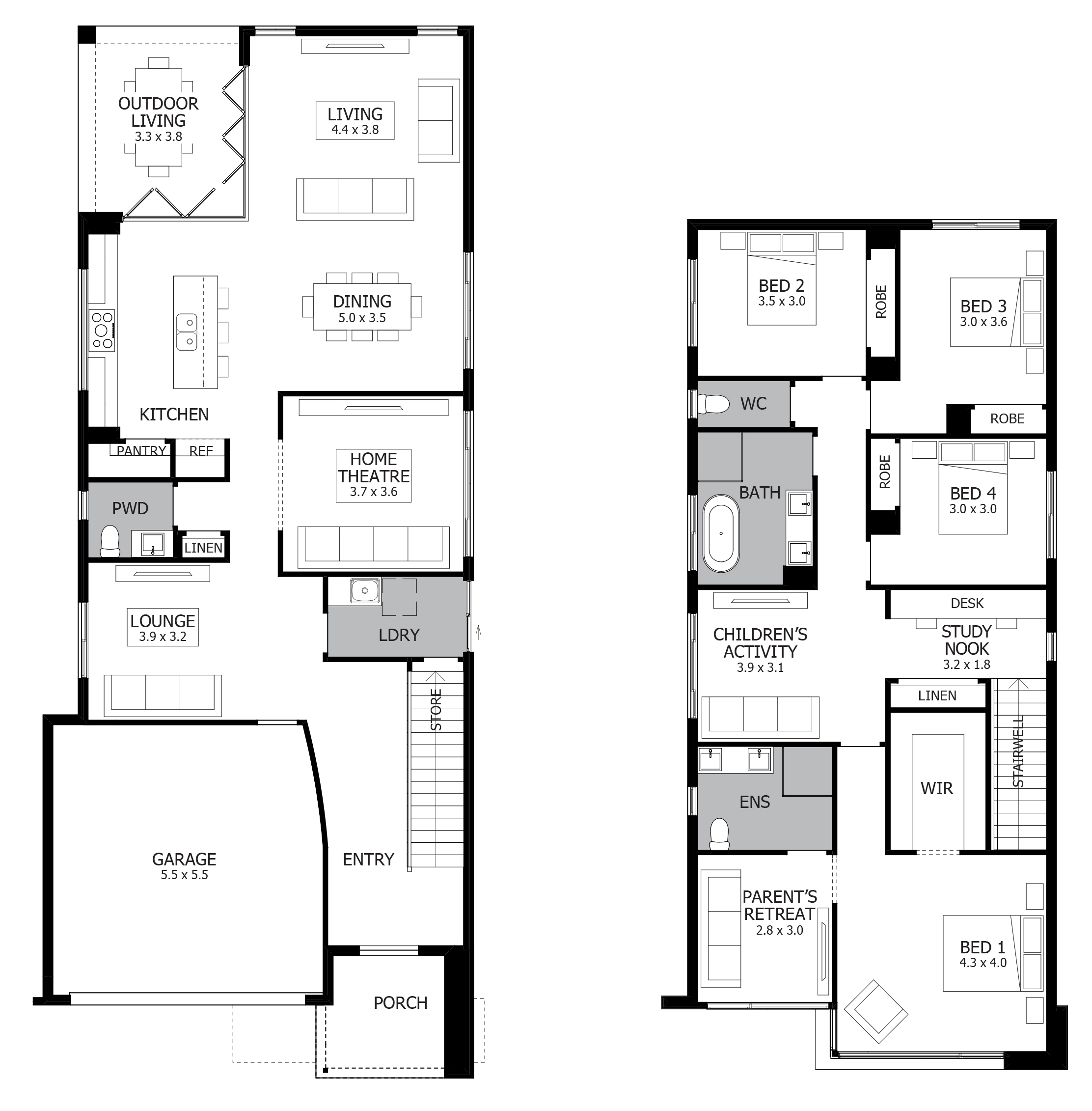

Enlarge floor plan
Flip floor plan
Rotate 90 degrees
4
2
1
2
Width
8.88m
Length
21.09m
Total
297.72m²
Fits lot width |
10.00m
Room Dimensions
Living/Dining
4.4 x 7.3m
Lounge
3.9 x 3.2m
Home Theatre
3.7 x 3.6m
Parent's Retreat
2.8 x 3.1m
Children's Activity
3.9 x 3.2m
Study Nook
3.2 x 1.9m
Bed 1
4.3 x 4.2m
Bed 2
3.5 x 3.0m
Bed 3
3.0 x 3.6m
Bed 4
3.0 x 3.0m
Outdoor Living
3.3 x 3.8m
Garage
5.5 x 5.5m
Additional Features
- Walk-In Robe
- Home Theatre
- Lounge & Children's Activity
- Parent's Retreat
- Study Nook
- Under-Stair Store
Note: Floor plan will differ slightly with application of different facades. Room dimensions detailed above reflect the Standard plan only and will vary for Click-On options, refer to plans for exact dimensions. Block widths required differ from area to area, are indicative only and subject to council guidelines and developer requirements. Please check with your New Home Sales Consultant for details in your area. Total (m²) area includes Outdoor Living area.
x
![]()
Note: Images of facades shown are a guide only. Material finishes, dimensions and colours shown are purely an expression of the artist and subject to change depending on availability and design updates. Roof tiles are a non-allowable selection where a specific home design, facade or click on floor plan option includes an internal ceiling finish that is raked or cathedral. Please refer to our current price list and specifications for façade finishes allowed in published price.
Facades
Note: Images of facades shown are a guide only. Material finishes, dimensions and colours shown are purely an expression of the artist and subject to change depending on availability and design updates. Roof tiles are a non-allowable selection where a specific home design, facade or click on floor plan option includes an internal ceiling finish that is raked or cathedral. Please refer to our current price list and specifications for façade finishes allowed in published price.
Enquiry
Request a FREE no obligation quote today!*
Please complete the enquiry form and someone from our team will be in contact within 24 hours.
Alternatively you can see more contact details on the contact page or give a New Home Sales Consultant a call.
* Excludes Duplex/Dual Living.
VIRTUAL TOURS
Have More with Mojo Inclusions
Solar & Electrical package
Home Security
External
Internal
Kitchen
Bathroom & Ensuite
Laundry
6kW Solar System with Tier 1 Jinko Panels
5kW SolaX inverter
7kW electric vehicle charger^
^Please note Duplex customers will receive 2x 2.5kw system,
2x inverters, 2x vehicle chargers and 2x 5.8kw batteries.
11.5 kW SolaX battery
Haier reverse cycle ducted air conditioning with day/night zoning
Haier HCI905FTB4 - 900mm induction cooktop 5 zones with flexi zone
(if gas option not chosen)
Haier 330 litre heat pump hot water system
(removes gas provisions)
Intercom System
1x Micron touch 7inch touch screen intercom with 1x slim metal door bell with on-board memory for single storey homes.
2x Micron touch screens for double storey homes
Security Camera System
4 x 6MP camera with 2.8mm fixed lens
1 x 4 channel IP recorder
1 x 2TB hard drive
Alarm System
4 x Bosch pet PIR detectors
AC plug pack, 12v back up battery -includes a Bosch LED keypad
Bosch 2000 8 zone alarm system
1 x internal siren & 1 x slim external siren
Your Choice of 3 Modern Facades For Single storey
Your Choice of 3 Modern Facades For Single storey
Your Choice of 3 Modern Facades For Single storey
Your Choice of 3 Modern Facades For Double storey
Your Choice of 3 Modern Facades For Double storey
Your Choice of 3 Modern Facades For Double storey
Your Choice Of:
Colorbond® roof OR
Your Choice Of:
Roof tiles from CSR Monier includes the Atura and Horizon color-on profiles with capped ridging
Gainsborough Tri-lock lever set to front entry door
Austral Brick selections from the Whitsunday, Wilderness and Everyday Life ranges
Carpet from select range to all bedrooms, bedroom hallways, stairs, first floor living areas and home theatre/s
(design specific)
*Including dual occupancy designs
Ceiling fan to outdoor living
Mizu Silk pull out sink mixer in your choice of colour
Brushed Nickel
Brass
Matte Black
Chrome
Afa Flow 768mm single bowl undermount sink OR
Afa Flow 796mm double bowl undermount sink
Haier dishwasher with 8 wash programs
Stainless Steel - HDW15F3S1 OR
Haier dishwasher with 8 wash programs
Black - HDW15F3B1
Haier 900mm 10 function oven - HWO90S11EB3
Haier 900mm gas cooktop five burners including a wok burner
Stainless Steel - HCG905WFCX3 OR
Haier 900mm gas cooktop five burners including a wok burner
Black - HCG905WFCG3
Haier 910mm quad door refrigerator freezer 623L with ice & water
Stainless Steel - HRF680YPS OR
Haier 910mm quad door refrigerator freezer 623L with ice & water
Black - HRF680YPC
Choice of Rangehood
Haier 900mm box chimney rangehood - HC90BLX1 (top) or Haier 900mm integrated undermount rangehood - HPH90ILX2 (bottom) in black
Choice of Rangehood
Haier 900mm box chimney rangehood - HC90BLB1 (top) or Haier 900mm integrated undermount rangehood - HPH90ILB2 (bottom) in black
Haier 600mm microwave oven with trim kit
Stainless Steel - OM25BLSX1
Haier 600mm microwave oven with trim kit
Black - OM25BLSB1
Choice of Inset Basin
Kado Lux round semi inset basin OR
Choice of Inset Basin
Posh Domaine semi inset basin
Mizu Drift shower rail with overhead shower in your choice of colour (not pictured)
Matte Black, Brushed Nickel, Chrome or Brass
Mizu Drift double towel rail in your choice of colour
Brushed Nickel
Mizu Drift double towel rail in your choice of colour
Matte Black
Mizu Drift double towel rail in your choice of colour
Chrome
Mizu Drift double towel rail in your choice of colour
Brass
Choice of Bath
Posh Solus 1500mm freestanding bath w/ overflow
Choice of Bath with pop up waste in your choice of colour
Decina Turin 1665mm inset bath w/ overflow
Mizu Silk bath outlet in your choice of colour
Chrome, Matte Black, Brushed Nickel or Brass
Mizu Silk basin mixer in your choice of colour
Brass
Mizu Silk basin mixer in your choice of colour
Matte Black
Mizu Silk basin mixer in your choice of colour
Chrome
Mizu Silk basin mixer in your choice of colour
Brushed Nickel
Mizu Drift toilet roll holder in your choice of colour (not pictured)
Brass, Matte Black, Chrome or Brushed Nickel
Mizu Silk shower mixer in your choice of colour (Not Pictured)
Brass, Matte Black, Chrome or Brushed Nickel
Haier front loading washing machine 8.5kg with 12 wash cycles
White - HWF85AN1 OR
Haier front loading washing machine 8.5kg with 12 wash cycles
Black - HWF85ANB1
Haier front loading heat pump 8kg with 12 drying cycles
White - HDHP80AN1OR
Haier front loading heat pump 8kg with 12 drying cycles
Black - HDHP80ANB1
Mizu Silk gooseneck pull out sink mixer in your choice of colour
Brass
Mizu Silk gooseneck pull out sink mixer in your choice of colour
Brushed Nickel
Mizu Silk gooseneck pull out sink mixer in your choice of colour
Matte Black
Mizu Silk gooseneck pull out sink mixer in your choice of colour
Chrome
